D/17/BB

D/17/BB
  • NEAR OCTAVE BANDWIDTH
  • OMNI-DIRECTIONAL RESPONSE
  • EFFICIENT TRANSMITTER
  • HIGH POWER PROJECTOR
  • DEEP WATER CAPABILITY

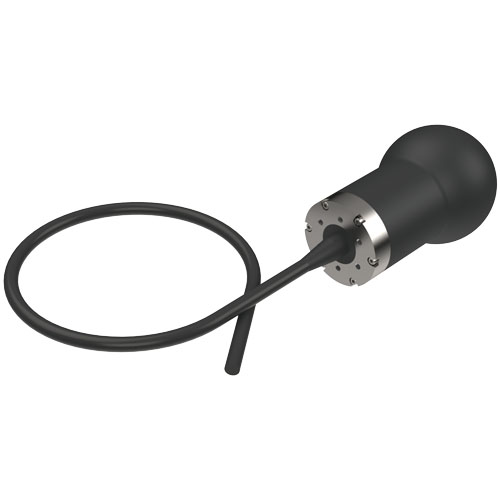

The D/17/BB is a highly efficient omni-directional transducer with a 3dB bandwidth from 12 kHz to 27 kHz.

The D/17/BB transducer is ideally suited for use in broadband noise systems, long-range transponder and voice/ data communications. The robust construction enables the transducer to operate in extreme underwater environments.

The D/17/BB is available with or without acoustic calibration, traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 14 / 25 kHz
Useful Frequency Range
  • 3 dB: 12 kHz to 27 kHz
Beam Pattern Horizontal
  • Omni ± 2 dB
Beam Pattern Vertical
  • Hemispherical (See Graph)
Transmit Sensitivity
  • 155 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -188 dB re 1V/μPa
Transmit Voltage (Abs. Max)
  • 300 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 300 Vrms @ 10%
  • 80 Vrms @ 100%

Mechanical Specification

Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Ø9mm Polyurethane Jacket, Screened Twisted Pair
Operating Depth
  • 2000m Standard
  • (May require an export licence)
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 3.4 kg / 1.6 kg
Connector
  • Not fitted as standard
  • (Optional BNC or Customer Specific)
