B/200

B/200
  • WIDE BAND RESPONSE
  • LOW NOISE PERFORMANCE
  • ACOUSTIC REFERENCE STANDARD
  • OMNI BEAM PATTERN
  • HIGH PERFORMANCE
  • DOUBLE-SCREENED CABLE

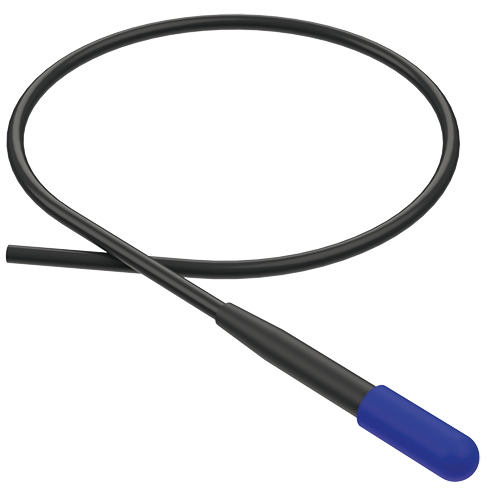

The B/200 miniature hydrophone has been designed by Neptune to achieve the optimum combination of frequency, physical size and receive sensitivity. This has resulted in a hydrophone with a wide variety of applications ranging from marine mammal sound studies to the analysis of near field pressure patterns.

The B/200 is available with or without acoustic calibration, traceable to National Standards.

Technical Specification

Resonant Frequency (Nominal)
  • 170 kHz
Useful Frequency Range
  • 10 Hz to 180 kHz
Beam Pattern Horizontal
  • Omni ± 2 dB at 100kHz
Beam Pattern Vertical
  • 270° ± 3 dB at 100kHz
Transmit Sensitivity
  • 136 dB re 1μPa/V @ 1m
Receive Sensitivity
  • -212 dB re 1V/μPa
Capacitance at 1 kHz (with 10m cable)
  • 3,900 pF
Transmit Voltage (Abs. Max)
  • 50 Vrms
Transmit Voltage / Duty Cycle (Max)
  • 50 Vrms @ 10%
  • 15 Vrms @ 100%

Mechanical Specification

Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Polyurethane Ø4mm Double Screened LNC
  • (Optional Ø3mm Single Screened LNC)
Operating Depth
  • 700m
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 0.16 kg / 0.03 kg
Connector
  • 10-32 UNF M
  • (Optional adaptor 10-32 UNF F to BNC M)
