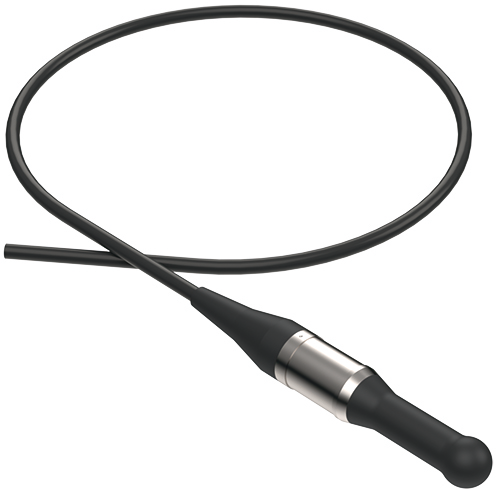

D/140/H

D/140/H
  • INTEGRAL PRE-AMPLIFIER
  • OMNI-DIRECTIONAL RESPONSE
  • LOW NOISE PERFORMANCE
  • BROADBAND OPERATION
  • MARINE MAMMAL AUDIO SENSOR
  • MAXIMUM CABLE LENGTH 250 M

The D/140/H is a true spherical balanced element combined with a low noise differential pre-amplifier.

Signals can be transmitted along cable lengths up to 250m, without any degradation. The pre-amplifier gain options of 20, 30 and 40 dB (pre-set during manufacture) are to suit customer requirements.

A differential to single ended Surface Receiver (Model T400) which includes additional filter and gain settings, can be supplied separately.

The D/140/H is available with or without acoustic calibration, traceable to National Standards.

Accessories are available for this product - click here to see our range.

Technical Specification

Resonant Frequency (Nominal)
  • 150 kHz
Useful Frequency Range
  • 10 Hz to 200 kHz
Beam Pattern Horizontal
  • Omni ±2 dB at 160kHz
Beam Pattern Vertical
  • 240° ±3 dB at 160kHz
Receive Sensitivity
  • Gain is pre-set and cannot be adjusted.
  • -178 dB re 1V/μPa with 20dB gain
  • -168 dB re 1V/μPa with 30dB gain
  • -158 dB re 1V/μPa with 40dB gain
Power Supply
  • +20 to +30 Volts dc @ < 100mA
  • 25mA quiescent, 100mA (Max)
Noise
  • <3nV/√Hz RTI
Output
  • Differential, 100Ω Impedance

Mechanical Specification

Operating Temperature
  • -5 to +40 °C
Storage Temperature
  • -40 to +80 °C
Cable Type
  • Polyurethane Ø8mm Twisted Pair (power) and Screened Twisted Pair
  • (signal)
Operating Depth
  • 900m Standard
  • (Optional 1500m - may require an export license)
Cable Length
  • 10 metres standard
  • (Additional lengths supplied to order)
Weight Air/Water (including 10m cable)
  • 0.76 kg / 0.18 kg
Connector
  • Not fitted as standard
  • (Souriau type if used with T400 Surface Receiver)
