Acoustic Calibration Service

Located in rural East Yorkshire, our open-water Acoustic Calibration Laboratory is the largest privately-owned facility of its type in the UK.

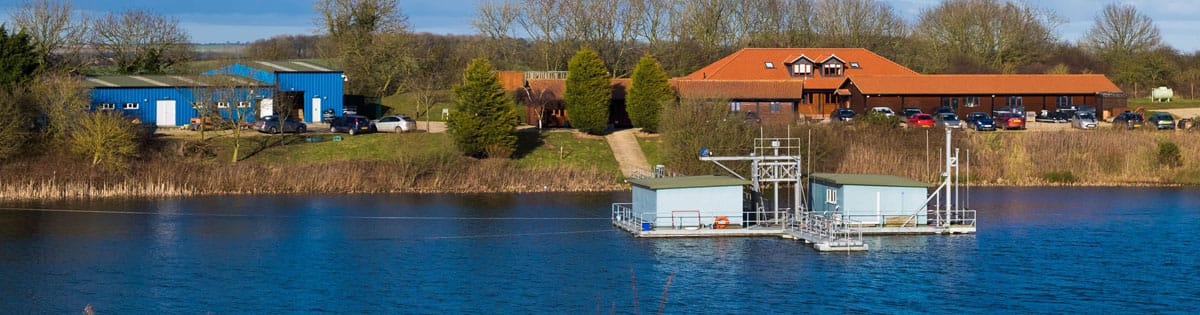

Neptune Sonar’s on site, open-water Acoustic Calibration Laboratory

Available for hire, the facility includes two independent test stations, each with an experienced test engineer to operate the equipment and assist where required. Neptune Sonar offers a bespoke testing and calibration service tailored to meet your exact requirements.

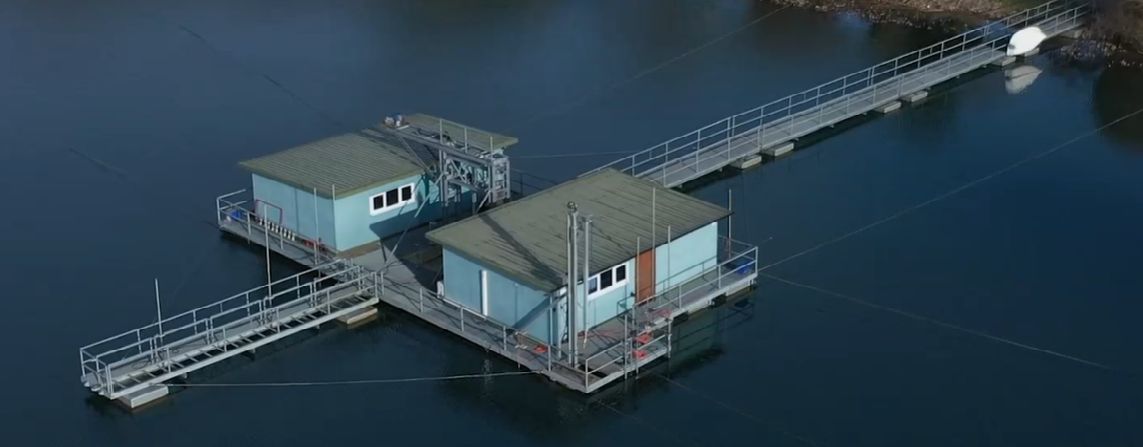

The measurement laboratory is constructed on a floating platform with an average water depth of 10m, and equipped with the most technically advanced instrumentation and software.

The ease of access provided by the 40m gangway offers significant benefits over the use of boats, by simplifying the movement and deployment of heavy equipment.

The laboratory is capable of measuring across a frequency range of 1kHz to 1.2MHz, including admittance, transmit and receive sensitivities, and source level and beam patterns. The measurements recorded are fully traceable to National Standards.

All the Reference Standards are regularly calibrated in-house using the reciprocity method and certified to National Standards. This calibration is carried out at various times throughout the year to compensate for water temperature variations. All uncertainty calculations are performed by the laboratory’s bespoke software for each discreet frequency.

Acoustic Calibration Laboratory Facilities

  • Acoustic measurement fully traceable to National Standards
  • Range of reference hydrophones and projectors
  • Average water depth 10m
  • Moonpool size 4.9m x 2.3m
  • Forklift and handling equipment
  • Laboratory and storage area
  • Shore-based support facilities
  • Power supply: 20 amp 3 phase 50Hz
  • Quiet, rural location
  • Wide choice of local accommodation

Our Company

Formed in 1990, Neptune Sonar is now the leading company in underwater transducer technology, offering one of the world's largest and most comprehensive range of undersea defence and commercial transducers.

Based in the UK, our research and manufacturing operation is located on a 25-acre site in East Yorkshire. With a 60,000 square metre trials lake and a floating calibration laboratory, the site provides an extensive range of facilities supporting every aspect of acoustic transducer development from modelling and design to final product acceptance.

We also provide PZT components from our Zeus Piezoceramics facility in Hessle, East Yorkshire.

Neptune Sonar Limited
Kelk Lake
East Yorkshire
YO25 8HG

T: 01262 490234
E: sales@neptune-sonar.co.uk
Find us on LinkedInContact us

We design, manufacture and test acoustic sensors and electronics for...

  • Naval Defense
  • Maritime Security
  • Offshore Oil & Gas
  • Hydrographic Survey Industry
  • Oceanographic Science
  • Environmental Sectors
  • Aquaculture
